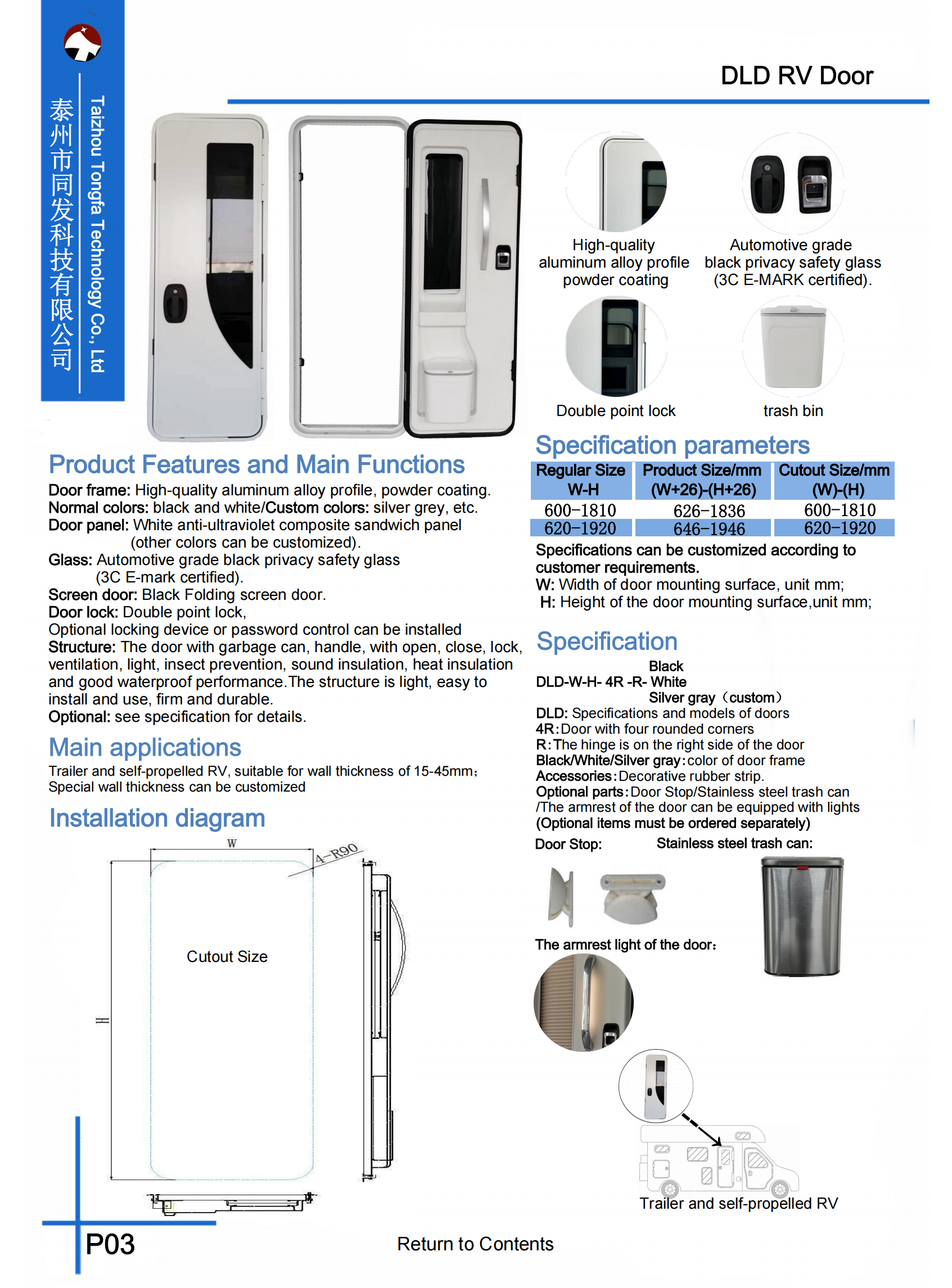

Product Features and Main Functions
Door frame: High-quality aluminum alloy profile, powder coating.
Normal colors: black and white/Custom colors: silver grey, etc.
Door panel: White anti-ultraviolet composite sandwich panel (other colors can be customized).
Glass: Automotive grade black privacy safety glass
(3C,E-mark certified).
Screen door: Black Folding screen door.
Door lock: Double point lock,
Optional locking device or password control can be installed
Structure: The door with garbage can, handle, with open, close, lock,ventilation, light, insect prevention, sound insulation, heat insulation and good waterproof performance.The structure is
light, easy to install and use, firm and durable.
Optional:see specification for details.
Main applications
Trailer and self-propelled RV, suitable for wall thickness of 15-45mm；Special wall thickness can be customized
Installation diagram
Specification parameters
Specifications can be customized according to customer requirements.
W: Width of door mounting surface, unit mm;
H: Height of the door mounting surface,unit mm;
Specification
Black
DLD-W-H- 4R -R- White
Silver gray（custom）DLD: Specifications and models of doors
4R:Door with four rounded corners
R:The hinge is on the right side of the door
Black/White/Silver gray:color of door frame
Accessories:Decorative rubber strip.
Optional parts:Door Stop/Stainless steel trash can/The armrest of the door can be equipped with lights
(Optional items must be ordered separately)
Door Stop: Stainless steel trash can:
The armrest light of the door：
