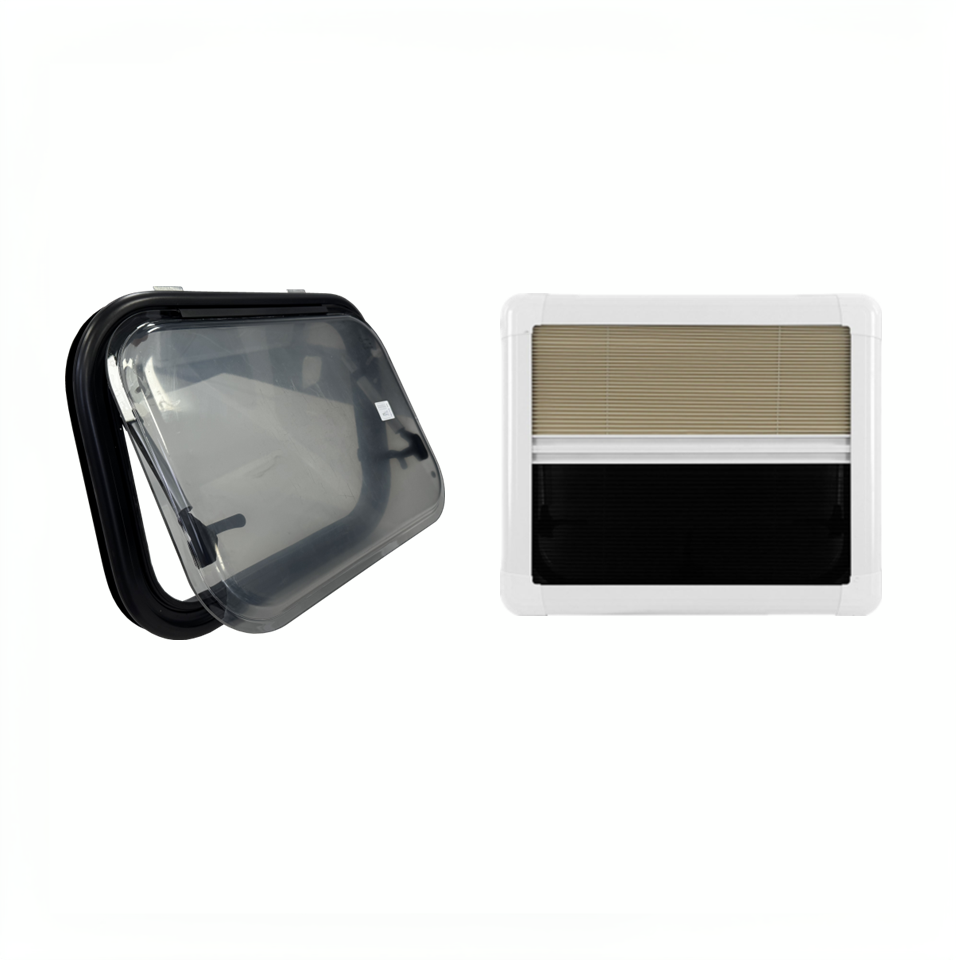

Product Features and Main Functions

Window frame: High-quality aluminum alloy profile, powder coating.

Normal colors: black and white;Customized colors: silver grey, etc.

Glass: Double layer UV resistant acrylic glass. (E-MARK certified)

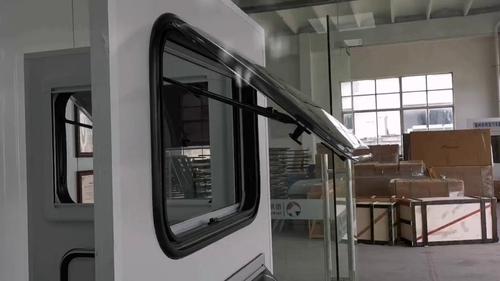

Open: The window is equipped with support rods, which can be extended to

open at two angles. The maximum opening angle varies depending on the size of the opening.

There are three options: gear, knob, and gas support rod; The maximum opening angle can reach 80 degrees.

Main function: The window has light transmission, insect prevention, soundinsulation, heat insulation and good waterproof performance.The window is fixed by tapping screw clamping wall, easy to install and use, lightweight structure, firm and durable, various models.

Options:

High-quality glass fiber gauze curtain and shading curtain integration.

Screen windows and sunshades:

Pull down: Open the sunshades

Push up: Open the Screen windows

Main applications

Used in RV or buildings,

Different installation frames are suitable for different wall thicknesses;

Total applicable range of wall thickness: 30-80mm.

Installation diagram

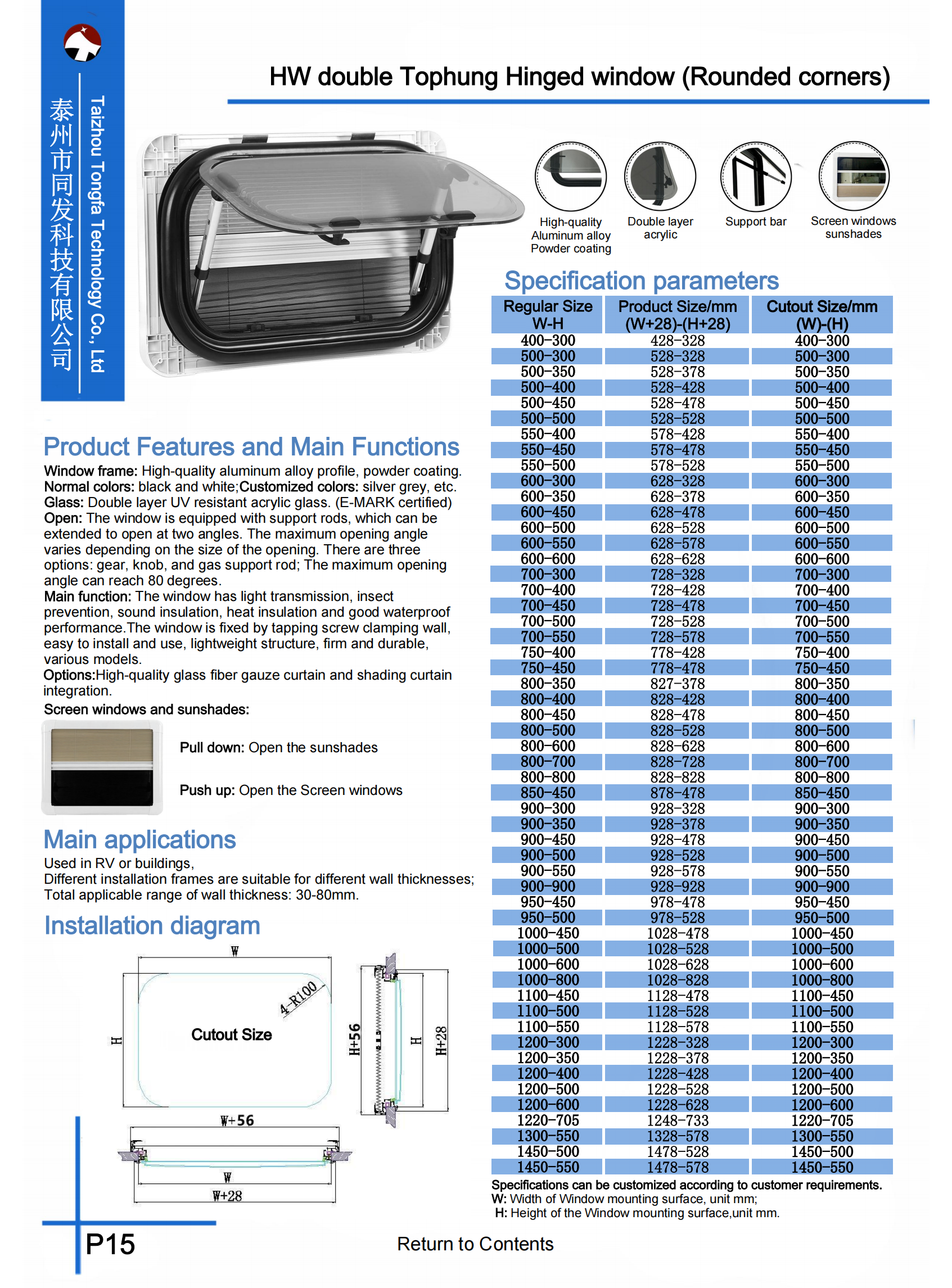

Specification parameters

Specifications can be customized according to customer requirements.

W: Width of Window mounting surface, unit mm;

H: Height of the Window mounting surface,unit mm.
