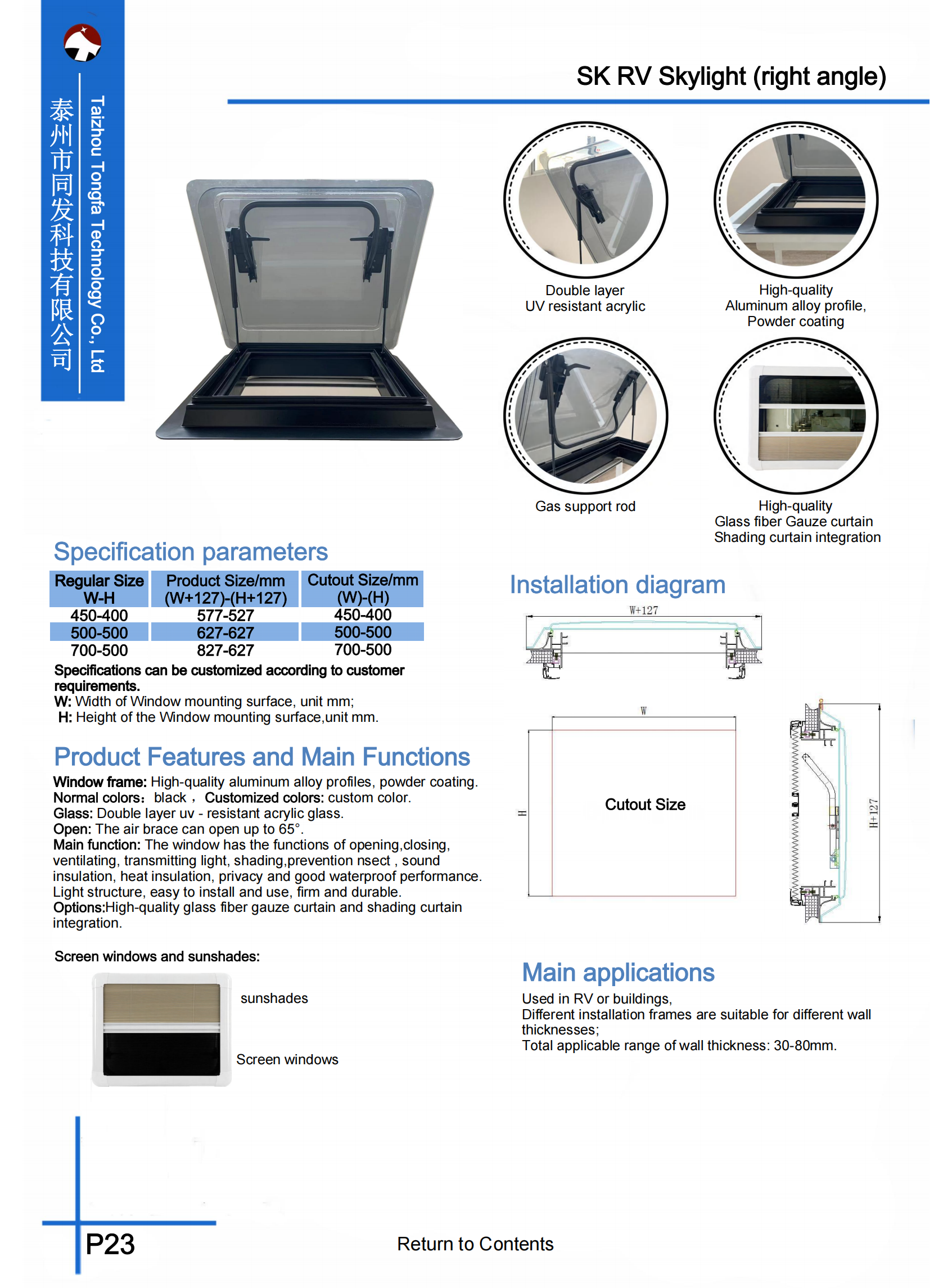

Specification parameters

Specifications can be customized according to customer requirements.

W: Width of Window mounting surface, unit mm;

H: Height of the Window mounting surface,unit mm.

Product Features and Main Functions

Window frame: High-quality aluminum alloy profiles, powder coating.

Normal colors：black ，Customized colors: custom color.

Glass: Double layer uv - resistant acrylic glass.

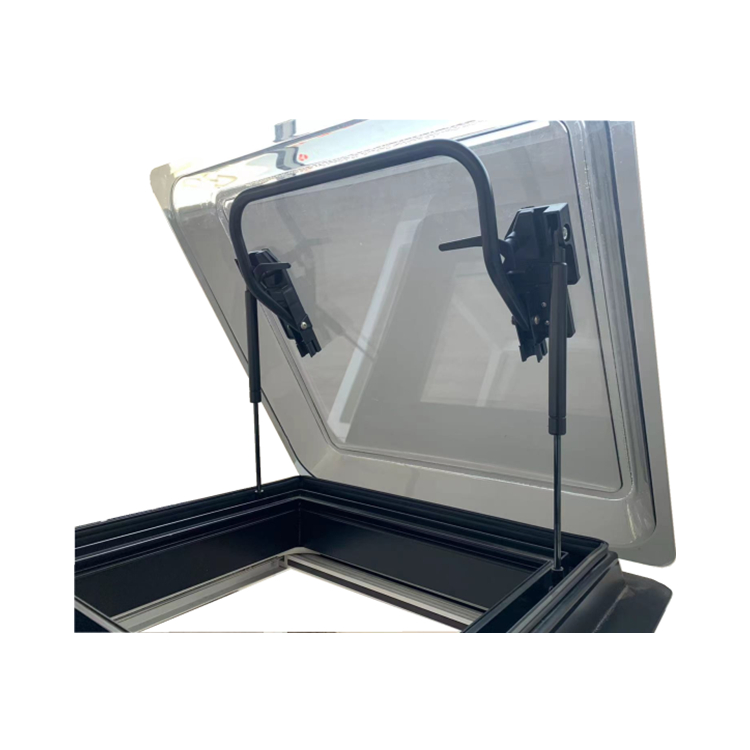

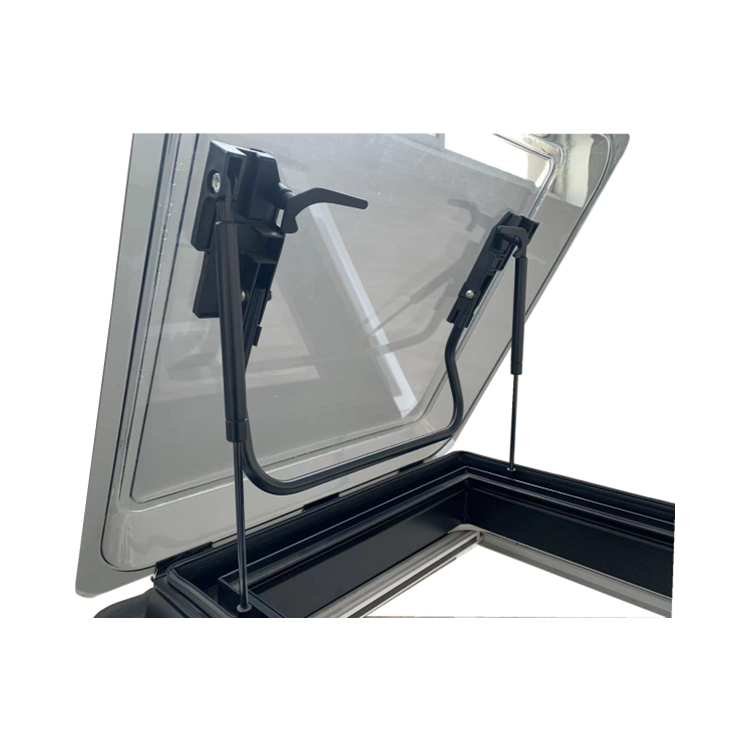

Open: The air brace can open up to 65°.

Main function: The window has the functions of opening,closing, ventilating, transmitting light, shading,prevention nsect , sound insulation, heat insulation, privacy and good waterproof performance.Light structure, easy to install and use, firm and durable.Options:High-quality glass fiber gauze curtain and shading curtain integration.

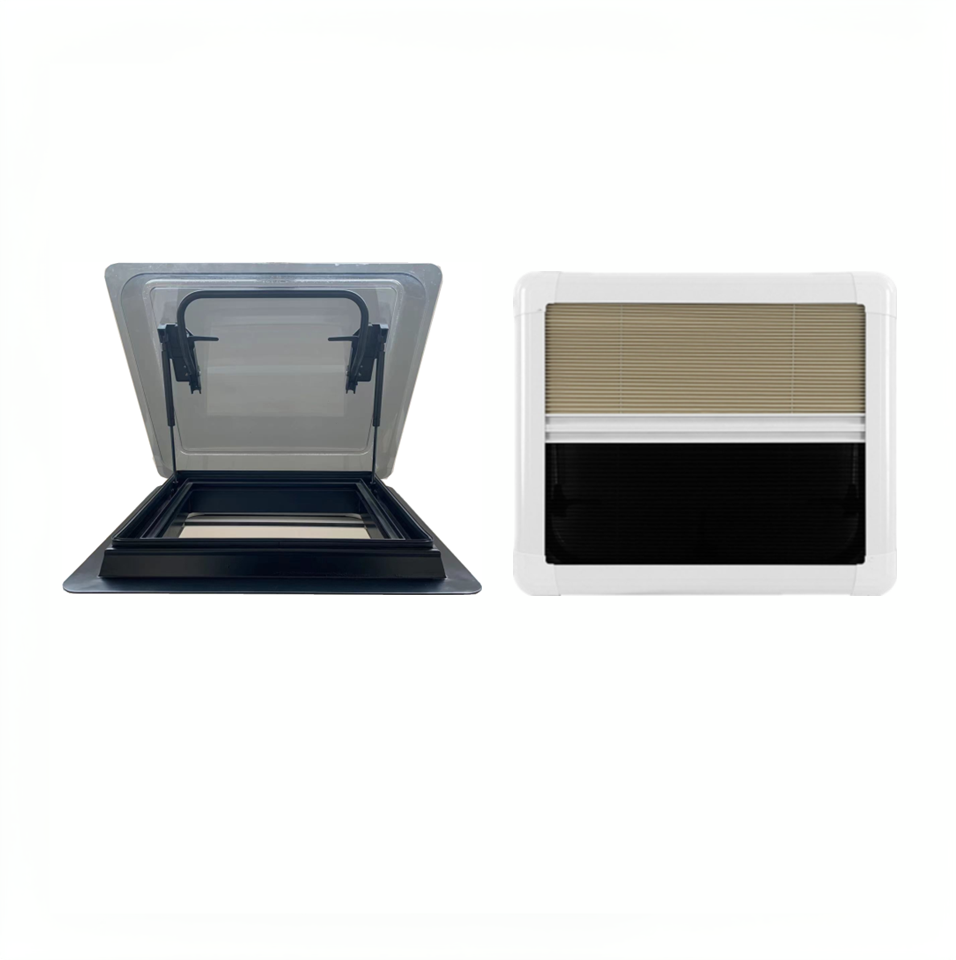

Screen windows and sunshades:

Main applications

Used in RV or buildings,

Different installation frames are suitable for different wall thicknesses;

Total applicable range of wall thickness: 30-80mm.

Installation diagram
