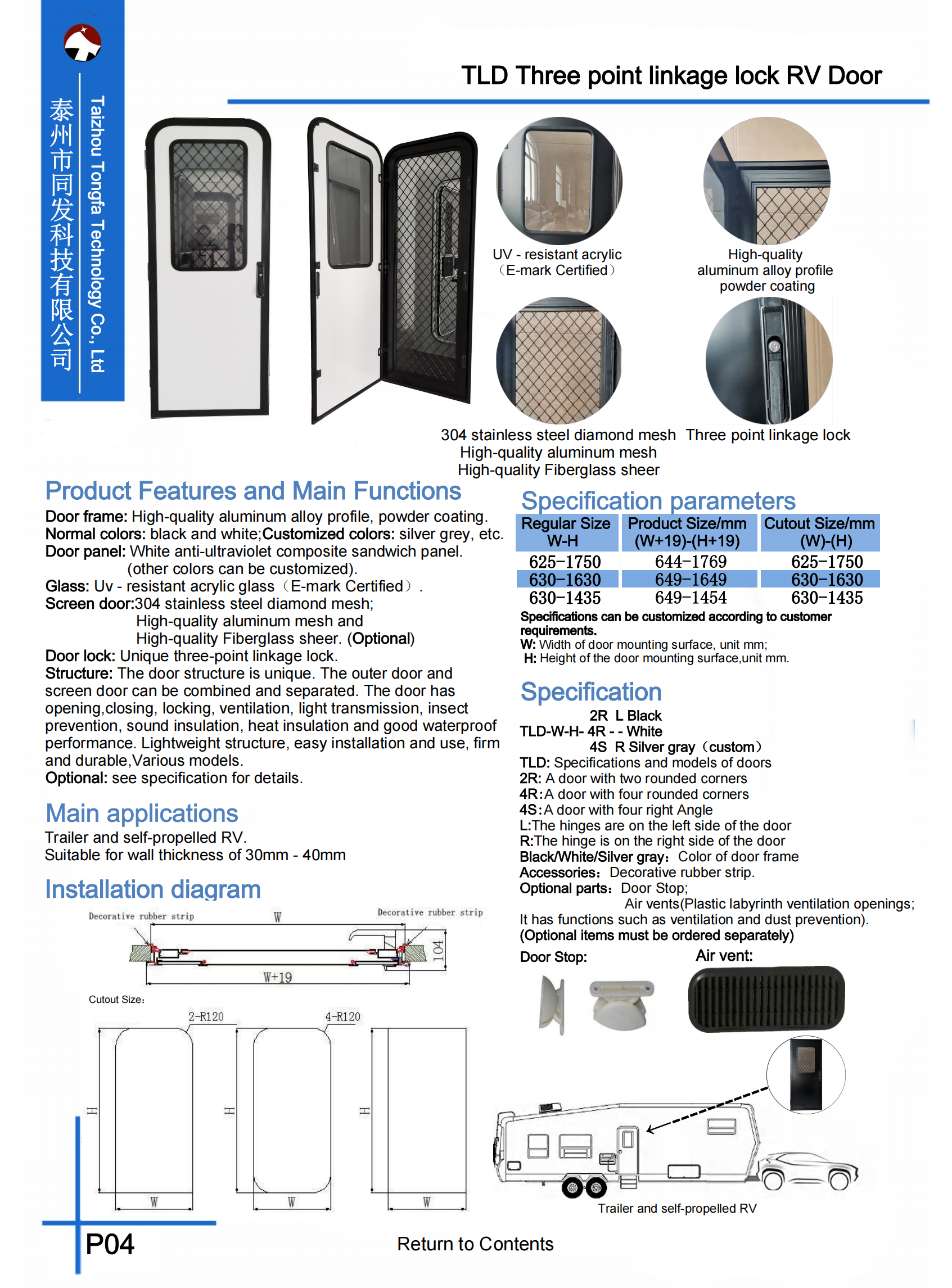

Product Features and Main Functions

Door frame: High-quality aluminum alloy profile, powder coating.

Normal colors: black and white;Customized colors: silver grey, etc.

Door panel: White anti-ultraviolet composite sandwich panel.

(other colors can be customized).

Glass: Uv - resistant acrylic glass（E-mark Certified）.

Screen door:304 stainless steel diamond mesh;

High-quality aluminum mesh and High-quality Fiberglass sheer. (Optional)

Door lock: Unique three-point linkage lock.

Structure: The door structure is unique. The outer door and screen door can be combined and separated. The door has opening,closing, locking, ventilation, light transmission, insect prevention, sound insulation, heat insulation and good waterproof performance. Lightweight structure, easy installation and use, firm and durable,Various models

Optional: see specification for details.

Main applications

Trailer and self-propelled RV.Suitable for wall thickness of 30mm - 40mm

Installation diagram

Specification parameters

Specifications can be customized according to customer requirements.

W: Width of door mounting surface, unit mm;

H: Height of the door mounting surface,unit mm.

Specification

                  2R L Black

TLD-W-H- 4R - - White

                  4S R Silver gray（custom）TLD: Specifications and models of doors

2R: A door with two rounded corners

4R:A door with four rounded corners

4S:A door with four right Angle

L:The hinges are on the left side of the door

R:The hinge is on the right side of the door

Black/White/Silver gray：Color of door frame

Accessories：Decorative rubber strip.

Optional parts：Door Stop;

Air vents(Plastic labyrinth ventilation openings; It has functions such as ventilation and dust prevention).

(Optional items must be ordered separately)

Door Stop：                                           Air vents：
