Product Features and Main Functions

Window frame: High-quality aluminum alloy profile, powder coating.

Normal colors: black and white;Customized colors: silver grey, etc.

Glass: 4mm toughened glass (3C、E-mark、DOT certified) or

single layer UV resistant acrylic glass.

Open: Fixed window, not open.

Main function: The window has light transmission, insect prevention, sound insulation, heat insulation and good waterproof performance.The window is fixed by tapping screw clamping wall, easy to install and use, lightweight structure, firm and durable, various models.

Options:High-quality glass fiber gauze curtain and shading curtain integration.

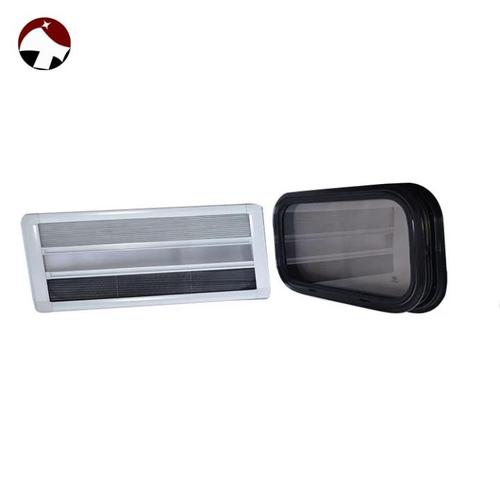

Screen windows and sunshades:

Pull down: Open the sunshades

Push up: Open the Screen windows

Installation diagram

Main applications

Used in Rv . Different installation frames are suitable for different wall thicknesses;

Total applicable range of wall thickness:30-90mm.

Specification parameters

Specifications can be customized according to customer requirements.

W: Width of Windowmounting surface, unit mm;

H: Height of the Window mounting surface,unit mm.
