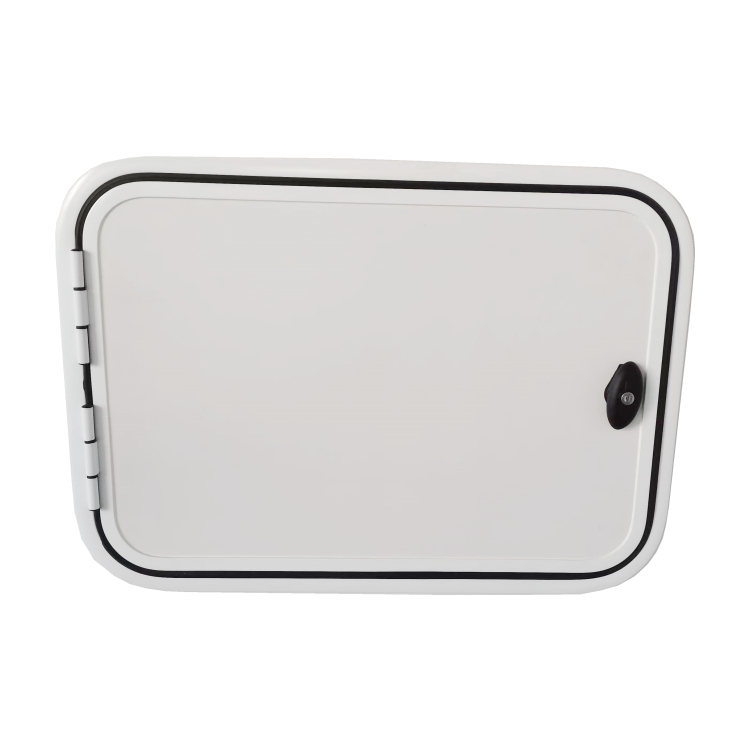

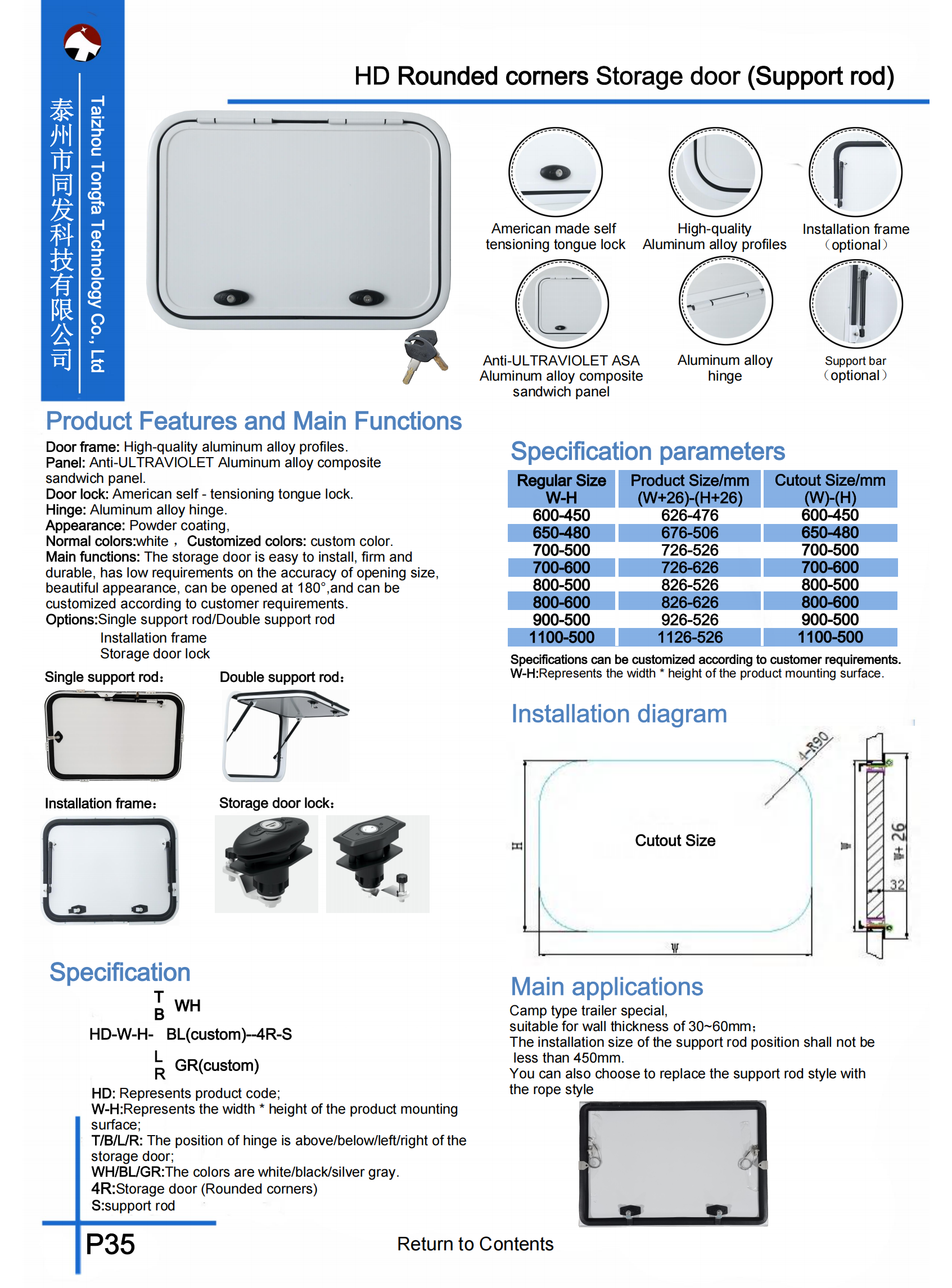

HD Rounded corners Storage door (Support rod)

model HD
Applicable models wall thickness of 20-50
Doorcase material high strength aluminum alloy profile
Door plank material Anti-ULTRAVIOLET ASA or aluminum alloy composite sandwich panel.
Door lock type American self - tensioning tongue lock
Hinge Aluminum alloy hinge
Appearance powder coating, white color as usual, black or silver gray as required
产品详情

Product Features and Main Functions

Door frame: High-quality aluminum alloy profiles.

Panel: Anti-ULTRAVIOLET Aluminum alloy composite sandwich panel.

Door lock: American self - tensioning tongue lock.

Hinge: Aluminum alloy hinge.

Appearance: Powder coating,

Normal colors:white Customized colors: custom color.

Main functions: The storage door is easy to install, firm and durable, has low requirements on the accuracy of opening size, beautiful appearance, can be

opened at 180°,and can be customized according to customer requirements.

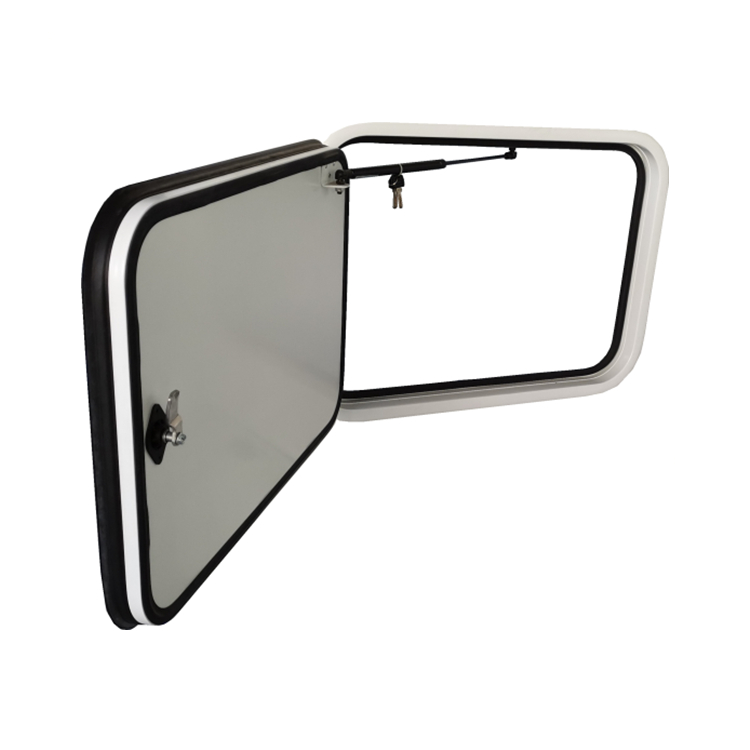

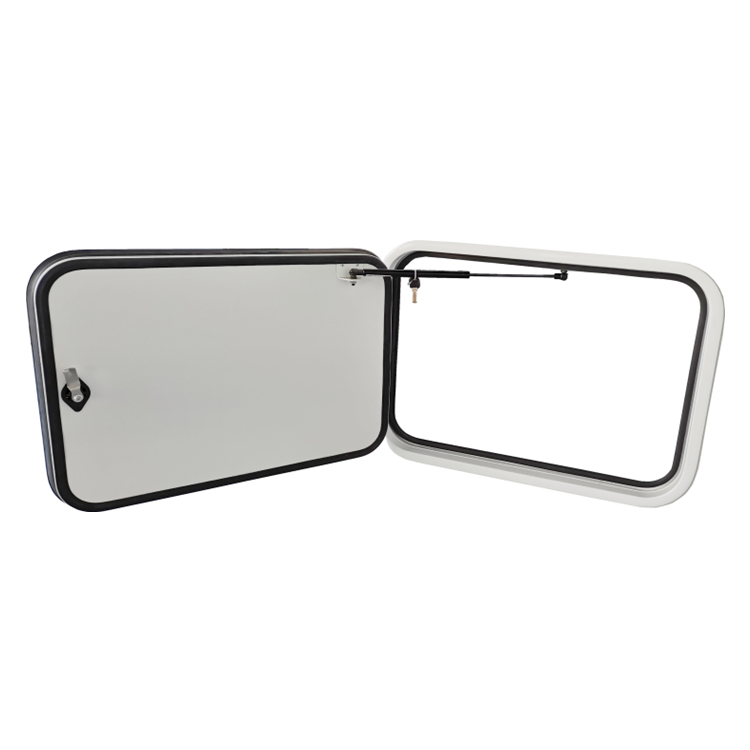

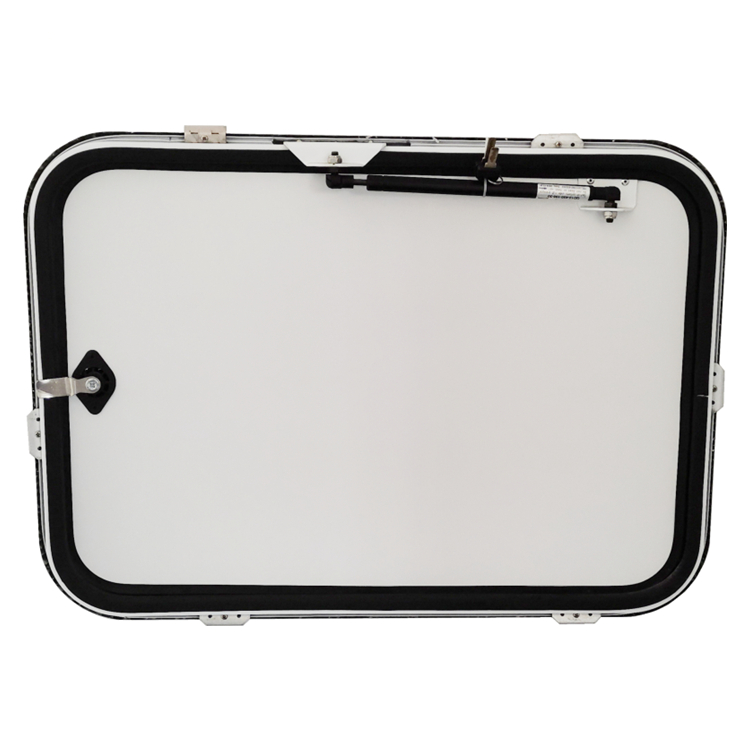

Options:Single support rod/Double support rod

Installation frame

Storage door lock

Single support rod:         Double support rod



Installation frame           Storage door lock



Specification

              T

                WH

              B

HD-W-H- BL(custom)--4R -S

               L

                GR(custom)

               R

HD: Represents product code;

W-H:Represents the width * height of the product mountingsurface;

T/B/L/R: The position of hinge is above/below/left/right of the storage door;

WH/BL/GR:The colors are white/black/silver gray.

4R:Storage door (Rounded corners)

S:support rod

Specification parameters

Specifications can be customized according to customer requirements.

W-H:Represents the width * height of the product mounting surface.

Installation diagram

Main applications

Camp type trailer special, suitable for wall thickness of 30~60mmThe installation size of the support rod position shall not be less than 450mm.

You can also choose to replace the support rod style with the rope style
